0.08mm Thick Wall Stainless Steel Pipe

0.08mm Thick Wall Stainless Steel Pipe

Product Details:

Place of Origin: China
Brand Name: Tisco Bao steel
Certification: SGS ISO MTC
Model Number: 304

Payment & Shipping Terms:

Minimum Order Quantity: 1 ton
Price: $1.5/KG
Packaging Details: Seaworthy wooden pallet or according to client's requirement
Delivery Time: 5-10 working day
Payment Terms: L/C, T/T, Western Union
Supply Ability: 500 Tons per Month
Get Best Price Contact Now

Detail Information

Grade: 304 Steel Grade: 300 Series
Standard: ASTM,JIS,AISI,DIN Type: Welded,Seamless
Thickness: 0.4-30mm Technique: Cold Rolled Hot Rolled
Shape: Round.square.Rectangle Finish: Brush Polish,hairline,160grit,bright
High Light:

hairline Stainless Steel Pipe

,

0.08mm Stainless Steel Pipe

,

0.08mm Thick Wall Stainless Steel Pipe

Product Description

ASTM AISI304 Thick - walled stainless steel pipe SUS316 310 310S small size metal steel tube

Details about 304 stainless steel tubes

1) Type: 304 Stainless Steel Seamless Pipe

2) Features: high-precision tube and ultra-long tube;
Outer diameter limit deviation ±0.01mm,
Inner diameter limit deviation ±0.025mm,
Inner hole circumference tolerance 0.020mm outer
Diameter is 1.3mm - 3.Omm,
Wall thickness is 0.015mm - 0.08mm
Full length 1.5mm - 6.Omm

3) 304L sanitary grade stainless steel pipe processing method: cold rolling.

4) Surface treatment: annealing, cold rolling, manual polishing, mechanical polishing.

Pickling (Ra≤2.5μm), mechanical polishing (Ra≤0.4μm), bright annealing (Ra≤0.3μm),
electropolishing (Ra≤0.2μm)

Stainless steel pipe more information


Product nameStainless steel pipe
Brand nameMITTEL
StandardASTM A312, ASTM A554, ASTM A790, EN10216-5, EN10217-7, JIS G3468, JIS G3459
Material


304, 316L, 321, 310S, 1.4301, 1.4307, 1.4404, S31803, S32750, 904L, Monel 400, Inconel 800

SurfacePickling, 400grit polishing, 600grit polishing, mirror finish
PaymentT/T,L/C at sight
PackingStandard Marine packing
ShipmentBy sea, by air

stainless steel  pipe Chemical composition(WT%)


 CSiMnCrNiSPN
201≤0.15≤1.05.5-7.516-183.5-5.5≤0.03≤0.06≤0.25
304≤0.08≤1.0≤2.018-208-10≤0.03≤0.045
430≤0.12≤0.75≤1.016-18≤0.6≤0.03≤0.04

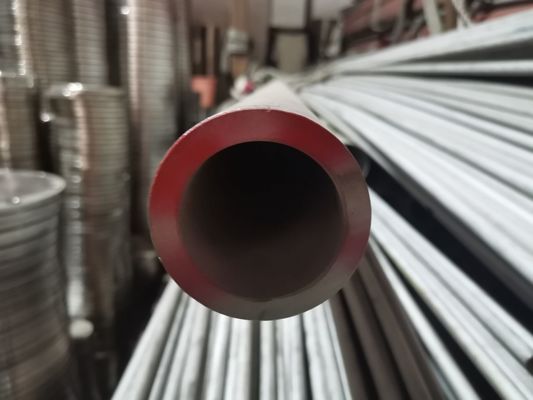

Stainless steel  tube picture

0.08mm Thick Wall Stainless Steel Pipe 00.08mm Thick Wall Stainless Steel Pipe 10.08mm Thick Wall Stainless Steel Pipe 2


304 SS pipe Specifications of stainless steel decorative pipe


Specifications of stainless steel decorative pipe
Standard0.60.70.80.91.01.21.52.02.53.03.54.04.5
Actual0.320.400.500.600.700.901.101.401.902.402.903.403.90
Φ12.30.570.710.881.051.211.531.84
Φ12.70.590.740.911.091.261.911.91
Φ15.30.720.891.111.321.532.332.33
Φ16.00.750.931.161.381.602.452.453.06
Φ17.20.811.001.251.491.732.192.653.31
Φ180.851.051.311.561.812.302.783.47
Φ190.891.111.381.651.912.432.943.684.86
Φ20.20.951.181.471.762.042.603.143.935.20
Φ221.041.291.611.922.232.843.434.315.71
Φ251.181.471.832.192.543.243.934.946.56
Φ281.321.652.062.462.863.654.425.577.41
Φ29.21.381.722.142.572.983.814.625.827.75
Φ31.81.511.882.342.803.254.165.046.368.4910.5512.53
Φ35.81.702.122.643.163.674.695.707.209.6311.9814.26
Φ381.802.252.803.353.904.996.077.6610.2512.7715.22
Φ42 2.493.103.714.325.526.728.5011.3914.2116.95
Φ48 2.853.554.254.956.347.719.7513.0916.3619.55
Φ50.8 3.013.764.505.246.718.1710.3413.8917.3620.7624.09
Φ60 3.564.455.336.207.959.6812.2616.5020.6624.7528.77
