Hot Rolled NO.1 Finish Equal Stainless Steel Angle Bar For Construction Structure
Product Details:
| Place of Origin: | China |
| Brand Name: | Tisco Bao steel |
| Certification: | SGS ISO MTC |
| Model Number: | 310 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1000 KG |
|---|---|
| Price: | 3.3 USD/KG |
| Packaging Details: | Seaworthy wooden case or according to client's requirement |
| Delivery Time: | 7-15 working days |
| Payment Terms: | L/C, T/T, Western Union, MoneyGram |
| Supply Ability: | 500 Tons/Month |
|
Detail Information |
|||
| Name: | Stainless Steel Angel Bar | Grade: | 310 |
|---|---|---|---|
| Standard: | ASTM, JIS, AISI | Shape: | Equal |
| Sample: | Free Sample | Certification: | ISO,SGS,Mill Test Certificate |
| Price Term: | CIF CFR FOB Ex-Work | Packing: | Standard Seaworthy Package |
| High Light: | Hot Rolled Stainless Steel Angle Bar,ASTM Stainless Steel Angle Bar,Hot Rolled equal angle bar |
||
Product Description
Equal Hot Rolled Stainless Steel Angle Bar 15*15 Size NO.1 Finish Use For Building
Equal stainless steel angle bar product description
| Product Name |
304 309 310 316 stainless steel angel bar
|
| Material |
310 316
|
| Price term |
FOB/CIF/CFR/EXW |
| Standard |
AISI ASTM JIS
|
| Packing |
According to the requirements |
| Certifactions |
ISO/SGS/BV
|
| Delivery time | 5-10 days,Based on stock and order quantity |
| Payment term | 30% deposit by T/T,70% before shipment |
Stainless steel chemical composition
| Grade | C | Si | Mn | P | S | Ni | Cr | Mo |
| 201 | ≤0 .15 | ≤0 .75 | 5. 5-7. 5 | ≤0.06 | ≤ 0.03 | 3.5 -5.5 | 16 .0 -18.0 | - |
| 202 | ≤0 .15 | ≤l.0 | 7.5-10.0 | ≤0.06 | ≤ 0.03 | 4.0-6.0 | 17.0-19.0 | - |
| 301 | ≤0 .15 | ≤l.0 | ≤2.0 | ≤0.045 | ≤ 0.03 | 6.0-8.0 | 16.0-18.0 | - |
| 302 | ≤0 .15 | ≤1.0 | ≤2.0 | ≤0.035 | ≤ 0.03 | 8.0-10.0 | 17.0-19.0 | - |
| 304 | ≤0 .0.08 | ≤1.0 | ≤2.0 | ≤0.045 | ≤ 0.03 | 8.0-10.5 | 18.0-20.0 | - |
| 304L | ≤0.03 | ≤1.0 | ≤2.0 | ≤0.035 | ≤ 0.03 | 9.0-13.0 | 18.0-20.0 | - |
| 309S | ≤0.08 | ≤1.0 | ≤2.0 | ≤0.045 | ≤ 0.03 | 12.0-15.0 | 22.0-24.0 | - |
| 310S | ≤0.08 | ≤1.5 | ≤2.0 | ≤0.035 | ≤ 0.03 | 19.0-22.0 | 24.0-26.0 | |
| 316 | ≤0.08 | ≤1.0 | ≤2.0 | ≤0.045 | ≤ 0.03 | 10.0-14.0 | 16.0-18.0 |
2.0- 3.0 |
| 316L | ≤0 .03 | ≤1.0 | ≤2.0 | ≤0.045 | ≤ 0.03 | 12.0 - 15.0 | 16 .0 -1 8.0 |
2.0 - 3.0 |
| 321 | ≤ 0 .08 | ≤1.0 | ≤2.0 | ≤0.035 | ≤ 0.03 | 9.0 - 13 .0 | 17.0 -1 9.0 | - |
| 630 | ≤ 0 .07 | ≤1.0 | ≤1.0 | ≤0.035 | ≤ 0.03 | 3.0-5.0 | 15.5-17.5 | - |
| 631 | ≤0.09 | ≤1.0 | ≤1.0 | ≤0.030 | ≤0.035 | 6.50-7.75 | 16.0-18.0 | - |
| 904L | ≤ 2 .0 | ≤0.045 | ≤1.0 | ≤0.035 | - | 23.0·28.0 | 19.0-23.0 | 4.0-5.0 |
Stainless steel angle bar dimension comparison list
|
Specification (side length * thickness)mm |
Quality(kg/m) |
Specification (side length * thickness)mm |
Quality(kg/m) |
| 20*3 | 0.89 | 80*5 | 6.21 |
| 20*4 | 1.15 | 80*6 | 7.38 |
| 25*3 | 1.12 | 80*7 | 8.53 |
| 25*4 | 1.46 | 80*8 | 9.66 |
| 30*3 | 1.37 | 80*10 | 11.87 |
| 30*4 | 1.79 | 90*6 | 8.35 |
| 36*3 | 1.66 | 90*7 | 9.66 |
| 36*4 | 2.16 | 90*8 | 10.95 |
| 36*5 | 2.65 | 90*10 | 13.48 |
| 40*3 | 1.85 | 90*12 | 15.94 |
| 40*4 | 2.42 | 100*6 | 9.37 |
| 40*5 | 2.98 | 100*7 | 10.83 |
| 45*3 | 2.09 | 100*8 | 12.28 |
| 45*4 | 2.74 | 100*10 | 15.12 |
| 45*5 | 3.37 | 100*12 | 17.9 |
| 45*6 | 3.99 | 100*14 | 20.61 |
| 50*3 | 2.33 | 100*16 | 23.26 |
| 50*4 | 3.06 | 110*7 | 11.93 |
| 50*5 | 3.77 | 110*8 | 13.53 |
| 50*6 | 4.46 | 110*10 | 16.69 |
| 56*3 | 2.62 | 110*12 | 19.78 |
| 56*4 | 3.45 | 110*14 | 22.81 |
| 56*5 | 4.25 | 125*8 | 15.5 |
| 56*8 | 6.57 | 125*10 | 19.13 |
| 63*4 | 3.91 | 125*12 | 22.7 |
| 63*5 | 4.82 | 125*14 | 26.19 |
| 63*6 | 5.72 | 140*10 | 21.49 |
| 63*8 | 7.47 | 140*12 | 25.52 |
| 63*10 | 9.15 | 140*14 | 29.49 |
| 70*4 | 4.37 | 140*16 | 33.39 |
| 70*5 | 5.4 | 160*10 | 24.73 |
| 70*6 | 6.41 | 160*12 | 29.39 |
| 70*7 | 7.4 | 160*14 | 33.99 |
| 70*8 | 8.37 | 160*16 | 38.52 |
| 75*5 | 5.82 | 180*12 | 33.16 |
| 75*6 | 6.91 | 180*14 | 38.38 |
| 75*7 | 7.98 | 180*16 | 43.54 |
| 75*8 | 9.03 | 180*18 | 48.63 |
| 75*10 | 11.09 | 200*14 | 42.89 |
| 200*16 | 48.68 | ||
| 200*18 | 54.4 | ||
| 200*20 | 60.06 | ||
| 200*24 | 71.17 |
Stainless steel application
Angle steel can be made up of various bearing members according to the different needs of the
structure,and can also be used as a joint between members.
Widely usedIn various construction structures and engineering structures, such as building beams,
Bridges,transmission towers, hoisting and transportation machinery, ships, industrial furnaces, reaction
towers, container racks, cable trench supports, power distribution pipes, bus support installation,
and warehouse shelves.

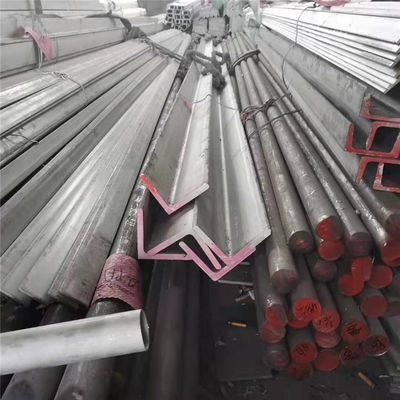

Product pictures
Our serives
a. Superior Quality.
All of the materials we used are 1st Class , our stainless steel product are all high-quality , equipment and technics are very advanced.
We pay much attention to every details of the quality from production to package.
b. Competitive Prices.
We ourselves bought material for our professional subsidiary factory to apply to producing, therefore,
our cost is lower than others and the prices are much more competitive.
c. Good sale Services:
(1) 24 hours, technical support by e-mail
(2) 7 days,promise to take back unsatisfactory goods
(3) 3 month quantity assurance
(4) 1 year,more orders,more discount
