Brushed 304 Stainless Steel U Channel Door Track Sizes For Decorative
Product Details:
| Place of Origin: | China |
| Brand Name: | Tisco Bao steel |
| Certification: | SGS ISO MTC |
| Model Number: | 201 316 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 2000 KG |
|---|---|
| Price: | 3.5 USD/KG |
| Packaging Details: | Seaworthy wooden pallet or according to client's requirement |
| Delivery Time: | 7-15 working days |
| Payment Terms: | L/C, T/T, Western Union, MoneyGram |
| Supply Ability: | 500 Tons/Month |
|
Detail Information |
|||
| Grade: | Carbon Steel,stainless Steel | Application: | Decorative |
|---|---|---|---|
| Length: | Customer's Requiremnts | ||
| High Light: | brushed stainless u channel For Decorative,304 Stainless Steel U Channel,brushed stainless steel u channel |
||
Product Description
ss 304 steel channel door track customizable steel channel sizes stainless steel u channel
Stainless steel channel steel is a long steel strip with a groove section. The same as I-steel, stainless steel channel steel is divided into ordinary channel steel and light channel steel two kinds, model and specification of the same waist height (H)× leg width (B)× waist thickness (D) mm number, such as 120×53×5 channel steel, namely waist height 120mm, round steel, need to add a, B, C on the right side of the model to be different. Usually, the stainless steel channel to the waist height of the centimeter number of its model, such as channel steel channel 12#. Channel steel specifications range from 5 to 40#. Including and marking requirements according to THE PROVISIONS of GB2101-80.
Stainless steel channel information
| MOQ | 2 TONS |
| Price term | FOB/CIF |
| Payment term | Our payment method is 30% byT/T and 70% payment before delivery. |
| Delivery tim e |
15-21days |
| Packing | Seaworthy package |
| Application | Construction structure, curtain wall engineering, mechanical equipment and vehicle manufacturing |
Stainless steel channel Chemical composition
| Grade | C | Si | Mn | P | S | Ni | Cr | Mo |
| 201 | ≤0 .15 | ≤0 .75 | 5. 5-7. 5 | ≤0.06 | ≤ 0.03 | 3.5 -5.5 | 16 .0 -18.0 | - |
| 202 | ≤0 .15 | ≤l.0 | 7.5-10.0 | ≤0.06 | ≤ 0.03 | 4.0-6.0 | 17.0-19.0 | - |
| 301 | ≤0 .15 | ≤l.0 | ≤2.0 | ≤0.045 | ≤ 0.03 | 6.0-8.0 | 16.0-18.0 | - |
| 302 | ≤0 .15 | ≤1.0 | ≤2.0 | ≤0.035 | ≤ 0.03 | 8.0-10.0 | 17.0-19.0 | - |
| 304 | ≤0 .0.08 | ≤1.0 | ≤2.0 | ≤0.045 | ≤ 0.03 | 8.0-10.5 | 18.0-20.0 | - |
| 304L | ≤0.03 | ≤1.0 | ≤2.0 | ≤0.035 | ≤ 0.03 | 9.0-13.0 | 18.0-20.0 | - |
| 309S | ≤0.08 | ≤1.0 | ≤2.0 | ≤0.045 | ≤ 0.03 | 12.0-15.0 | 22.0-24.0 | - |
| 310S | ≤0.08 | ≤1.5 | ≤2.0 | ≤0.035 | ≤ 0.03 | 19.0-22.0 | 24.0-26.0 | |
| 316 | ≤0.08 | ≤1.0 | ≤2.0 | ≤0.045 | ≤ 0.03 | 10.0-14.0 | 16.0-18.0 |
2.0- 3.0 |
| 316L | ≤0 .03 | ≤1.0 | ≤2.0 | ≤0.045 | ≤ 0.03 | 12.0 - 15.0 | 16 .0 -1 8.0 |
2.0 - 3.0 |
| 321 | ≤ 0 .08 | ≤1.0 | ≤2.0 | ≤0.035 | ≤ 0.03 | 9.0 - 13 .0 | 17.0 -1 9.0 | - |
| 630 | ≤ 0 .07 | ≤1.0 | ≤1.0 | ≤0.035 | ≤ 0.03 | 3.0-5.0 | 15.5-17.5 | - |
| 631 | ≤0.09 | ≤1.0 | ≤1.0 | ≤0.030 | ≤0.035 | 6.50-7.75 | 16.0-18.0 | - |
| 904L | ≤ 2 .0 | ≤0.045 | ≤1.0 | ≤0.035 | - | 23.0·28.0 | 19.0-23.0 | 4.0-5.0 |
Stainless steel U channel Specification&Model
| Specification & Model | Specification & Model | theoretical weight | ||
| high | Width | Thickness | ||
| 5# | 50 | 37 | 4.5 | 5.438 |
| 6.3# | 63 | 40 | 4.8 | 6.634 |
| 8# | 80 | 43 | 5 | 8.045 |
| 10# | 100 | 48 | 5.3 | 10.007 |
| 12# | 120 | 53 | 5.5 | 12.059 |
| 14A# | 140 | 58 | 4.9 | 14.535 |
| 14B# | 140 | 60 | 8.0 | 16.733 |
| 16A# | 160 | 63 | 6.5 | 17.24 |
| 16B# | 160 | 65 | 8.5 | 19.752 |
| 18A# | 180 | 68 | 7.0 | 20.174 |
| 18B# | 180 | 70 | 9.0 | 23 |
| 20A# | 200 | 73 | 7.0 | 22.637 |
| 20B# | 200 | 75 | 9.0 | 22.777 |
| 22A# | 220 | 77 | 7.0 | 24.999 |
| 22B# | 220 | 79 | 9.0 | 28.453 |
| 25A# | 250 | 78 | 7.0 | 27.41 |
| 25B# | 250 | 80 | 9.0 | 31.335 |
| 28A# | 280 | 82 | 7.5 | 31.427 |
| 28B# | 280 | 84 | 9.5 | 35.823 |
| 30A# | 300 | 85 | 7.5 | 34.463 |
| 30B# | 300 | 87 | 9.5 | 39.173 |
| 32A# | 320 | 88 | 8 | 38.083 |

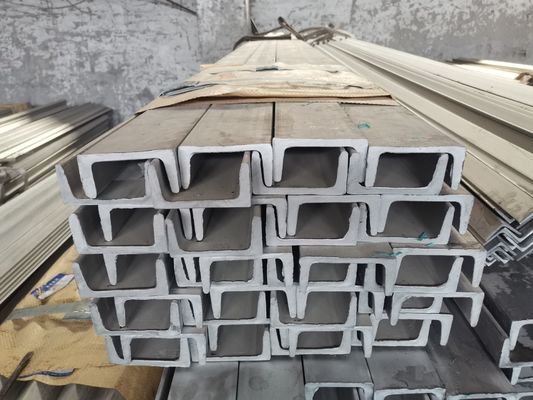

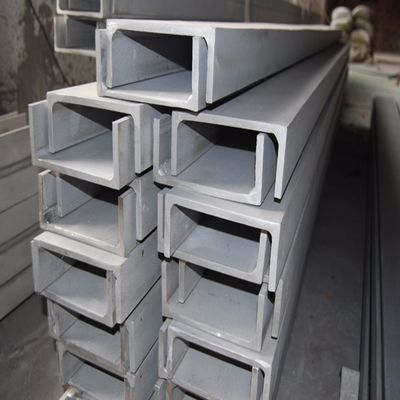

Stainless steel channel picture
Service
1. Minimum Order Quantity?
MOQ is 2 tons, your quantity is ok, sample is available.
2. What kind of terms of payment?
T/T, L/C,Western Union are available.
3. What grams of the product can you offer?
These products can be customized according to your requirement.
4.Can you do Customization & Reproduction if I provide a photo?
Yes, we do Customization & Reproduction service, please check the details and sample above.
You need to send the pictures to our email, tell us the specification you want, then we will quote you exact price. We will take photos for you check.
According to the shape of channel steel can be divided into four kinds: cold bending channel steel,
Packing
1.with plastic cap to protect both ends
2.weaving bag wrapped outside the pipe
3.then pack into wooden case
FAQ
Q: Are you trading company or manufacturer ?
A: We are factory.
Q: How long is your delivery time?
A: Generally it is 5-10 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to quantity.
Q: Do you provide samples ? is it free or extra ?
A: Yes, we could offer the sample for free charge but do not pay the cost of freight.
Q: What is your terms of payment ?
A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shippment.
